Exhibit 99.4

TECHNICAL REPORT SUMMARY

FRAC SAND RESOURCES AND RESERVES

KERMIT MINE

Winkler County, Texas

Prepared For

HI-CRUSH OPERATING, LLC (F/K/A HI-CRUSH INC.)

By

John T. Boyd Company

Mining and Geological Consultants

Pittsburgh, Pennsylvania

Report No. 3554.017

APRIL 2024

John T. Boyd Company Mining and Geological Consultants

TABLE OF CONTENTS

Page

LETTER OF TRANSMITTAL

TABLE OF CONTENTS

GLOSSARY AND ABBREVIATIONS

TABLE OF CONTENTS - Continued

TABLE OF CONTENTS - Continued

TABLE OF CONTENTS - Continued

TABLE OF CONTENTS - Continued

TABLE OF CONTENTS - Continued

GLOSSARY OF ABBREVIATIONS AND DEFINITIONS

GLOSSARY OF ABBREVIATIONS AND DEFINITIONS - Continued



Frac Sand Reserve	:	A Frac Sand Reserve is an estimate of tonnage and grade or quality of Frac Sand Resource that, in the opinion of the qualified person, can be the basis of an economically viable project. More specifically, it is the economically mineable part of a Frac Sand Resource, which includes diluting materials and allowances for losses that may occur when the material is mined or extracted.
FracTAL	:	FracTAL LLC
Hi-Crush	:	Hi-Crush Operating, LLC (f/k/a Hi-Crush Inc.) and affiliated companies.
Indicated Frac Sand Resource	:	An Indicated Frac Sand Resource is that part of a Frac Sand Resource for which quantity, grade or quality, densities, shape, and physical characteristics are estimated with sufficient confidence to allow the application of Modifying Factors in sufficient detail to support mine planning and evaluation of the economic viability of the deposit. Geological evidence is derived from adequately detailed and reliable exploration, sampling and testing, and is sufficient to assume geological and grade or quality continuity between points of observation. An Indicated Frac Sand Resource has a lower level of confidence than that applying to a Measured Frac Sand Resource and may only be converted to a Probable Frac Sand Reserve.
Inferred Frac Sand Resource	:	That part of a Frac Sand Resource for which quantity and quality are estimated based on limited geological evidence and sampling. The level of geological uncertainty associated with an Inferred Frac Sand Resource is too high to apply relevant technical and economic factors likely to influence the prospects of economic extraction in a manner useful for evaluation of economic viability. Because an Inferred Frac Sand Resource has the lowest level of geological confidence of all Frac Sand Resources, which prevents the application of the modifying factors in a manner useful for evaluation of economic viability, an Inferred Frac Sand Resource may not be considered when assessing the economic viability of a mining project, and may not be converted to a Frac Sand Reserve.
IRR	:	Internal rate-of-return
ISO	:	International Organization for Standardization
Kermit	:	Kermit Mine and its various facilities
LOM	:	Life-of-mine
Measured Frac Sand Resource	:	A Measured Frac Sand Resource is that part of a Frac Sand Resource for which quantity, grade or quality, densities, shape, and physical characteristics are estimated with confidence sufficient to allow the application of Modifying Factors to support detailed mine planning and final evaluation of the economic viability of the deposit. Geological evidence is derived from detailed and reliable exploration, sampling, and testing and is sufficient to confirm geological and grade or quality continuity between points of observation. A Measured Frac Sand Resource has a higher level of confidence than that applying to either an Indicated Frac Sand Resource or an Inferred Frac Sand Resource. It may be converted to a Proven Frac Sand Reserve or to a Probable Frac Sand Reserve.

GLOSSARY OF ABBREVIATIONS AND DEFINITIONS - Continued

GLOSSARY OF ABBREVIATIONS AND DEFINITIONS - Continued

GLOSSARY OF ABBREVIATIONS AND DEFINITIONS - Continued

1.0        EXECUTIVE SUMMARY

1.1            Introduction

Hi-Crush’s Kermit Mine hosts two active surface sand mining and processing operations that have been producing various finished frac sand products—generally in the 40/140 mesh size range—since August 2017.

Hi-Crush retained BOYD to independently prepare estimates of frac sand resources and frac sand reserves for the Kermit Mine. The purpose of this TRS is threefold: (1) to summarize technical and scientific information for the subject mining property, (2) to provide the conclusions of our review of the information for the property, and (3) to provide statements of frac sand resources and frac sand reserves for Kermit in accordance with the disclosure requirements set forth in S-K 1300.

Information used in our assessment was obtained from: (1) data, reports, and other information provided by Hi-Crush, (2) existing BOYD work files and reports, (3) discussions with Hi-Crush personnel, (4) records on file with regulatory agencies, (5) data, reports, and other information from public sources, and (6) nonconfidential information in BOYD’s possession.

Unless otherwise noted, the effective date of the information provided herein, including estimates of frac sand resources and frac sand reserves, is December 31, 2023.

1.2            Property Description and Location

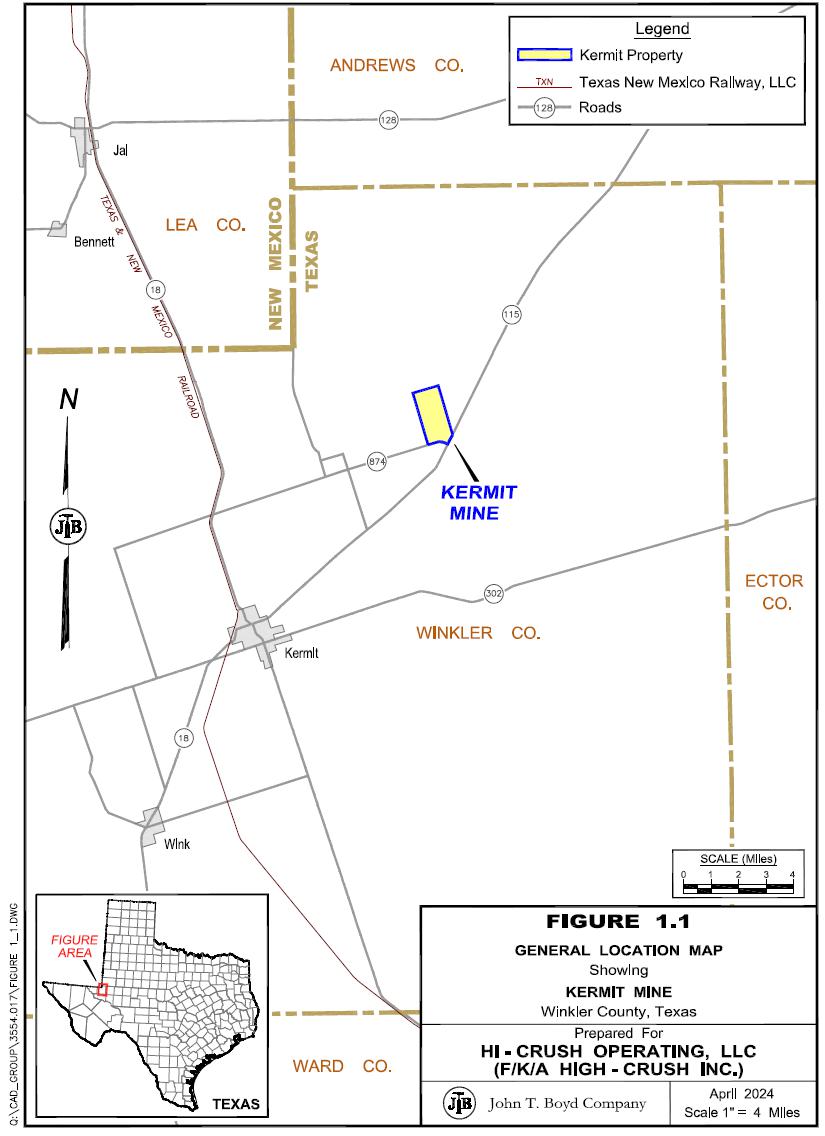

The Kermit Mine is located in Winkler County, Texas, approximately nine miles northeast of the town of Kermit. The general location of the Kermit Mine is provided in Figure 1.1, following this page.

The Kermit property comprises approximately 1,226 acres of surface and subsurface (i.e., mineral) rights—entirely owned in fee by Hi-Crush.

The Kermit Mine is located within an active sand dune belt, in an area of West Texas where the High Plains and Trans-Pecos desert regions converge. The region’s surface is characterized by windblown Quaternary-aged sand formations, including sand dunes, undivided sand and silt deposits, and sheet sand deposits.

Most of the Kermit property is uniformly covered by Quaternary age unconsolidated deposits, ranging from windblown dunes and sheet sands to alluvial sands, silts, clays, and caliche. Surficial sand deposition within the property boundaries indicate the mineable deposit ranges in thickness from approximately 10 ft to 90 ft, averaging approximately 60 ft across the property. There is no discernable overburden (i.e., overlying waste) material apart from sparse areas of vegetation and roots, which are easily removed during processing operations. The target sand deposit is considered to be of low geologic complexity.

The sand mined at the Kermit Mine is processed on-site to produce frac sand. Frac sand is a naturally occurring, high silica content quartz sand with grains that are generally well-rounded. The main difference between frac sand and other sands is that frac sand grains are relatively pure in composition, consisting almost entirely of quartz; other sands have numerous impurities that may be cemented to the quartz grains. The pure quartz composition of frac sand grains, along with their homogenous size and well-rounded and spherical shape, gives these sands the characteristics (e.g., crush strength, low acid solubility, low turbidity) that are needed by oil and gas producers for use in developing wells.

In developing the Kermit property, Hi-Crush completed a series of comprehensive geologic exploration campaigns, totaling 42 drill holes—and roughly 2,300 ft of core drilling—across the Kermit property. The results of these exploration programs consist of geologic logs and subsurface sand samples, grain size analyses of the samples, and American Petroleum Institute (API) proppant sand testing of composited samples. These results were utilized to define the lateral extent, thickness, grain size distribution, and mineralogy of the target sand deposit at the Kermit Mine.

BOYD’s review indicates that the exploration data: (1) were carefully and professionally collected, prepared, and documented, (2) conform with general industry standards, and (3) are appropriate for use in evaluating and estimating frac sand resources and reserves.

This report provides an estimate of frac sand reserves for Hi-Crush’s Kermit Mine in accordance with the requirements set forth in S-K 1300. These estimates were independently prepared by BOYD for the purpose of this report. The reserve estimate is the result of a thorough geologic investigation of the property, appropriate modeling of the deposit, development of life-of-mine (LOM) plans, and consideration of the relevant processing, economic, marketing, legal, environmental, socio-economic, and regulatory factors.

It is BOYD’s independent opinion that the estimated frac sand reserves for the Kermit Mine as of December 31, 2023, total approximately 60.9 million saleable product (i.e., 40/140 mesh size frac sand) tons, which are entirely owned by Hi-Crush. Table 1.1, below, presents the estimated frac sand reserves by classification and mesh size, for the Kermit Mine.

Table 1.1: Frac Sand Reserves (as of December 31, 2023)

Hi-Crush has a well-established history of mining, processing, and selling frac sand products from their regional operations. BOYD has concluded that sufficient studies have been undertaken to enable the frac sand resources to be converted to frac sand reserves based on established operating methods and forecasted costs and revenues. The forecasted sales prices used in the estimation of frac sand reserves for the Kermit Mine vary by year, ranging from $26.00 to 26.14 per ton, and averaging $26.04 per ton of finished frac sand over the expected life of the reserves (refer to Section 10.5 and Table 12.1 for further details).

There are no reportable additional frac sand resources, excluding those converted to reserves, for the Kermit Mine. Quantities of frac sand controlled by Hi-Crush within the defined boundaries of the Kermit property, which are not reported as frac sand reserves, are not considered to be technically, economically, and/or legally extractable at the time of determination; as such, they are not reportable as frac sand resources in addition to reserves.

Contractors are employed to excavate sand and overburden (i.e., overlying waste material) at the Kermit Mine. The target sand deposit is excavated using conventional truck and excavator surface mining techniques. Generally, the negligibly thin layer of overburden is mined with the underlying sand. The sand is unconsolidated and does not require drilling or blasting. Excavators and/or front-end loaders are used to load the excavated sand into articulated haul trucks. The haul trucks deliver raw sand material to run-of-mine (ROM) stockpiles located near the processing facilities.

Each of the Kermit Mine’s two processing operations comprise the following three major components, which are typical in the production of frac sand:

The two Kermit processing facilities share very similar designs. Each of the Kermit processing facilities has a nominal (or “nameplate”) capacity of 3 million tons of finished frac sand per year for a combined production capacity at Kermit of 6 million tons per year. Hi-Crush plans to produce approximately 4.9 million tons per year of finished products or 82% of nameplate capacity. Based on our review, it is BOYD’s opinion that the processing methods and existing equipment at the processing plants will be sufficient for the forecasted production levels over the life of the operation.

All of the basic infrastructure required for the ongoing operations is in place at the Kermit Mine. The mining and processing operations are supported by the various utilities and transportation networks needed to allow the production and transportation of finished frac sands.

BOYD is unaware of any reported interruptions, outages, shortages, or failures related to infrastructure requirements which have materially affected operations at the Kermit Mine.

Given the operation is well-established, we opine that the risk of such events materially affecting the estimates of frac sand reserves presented herein is low.

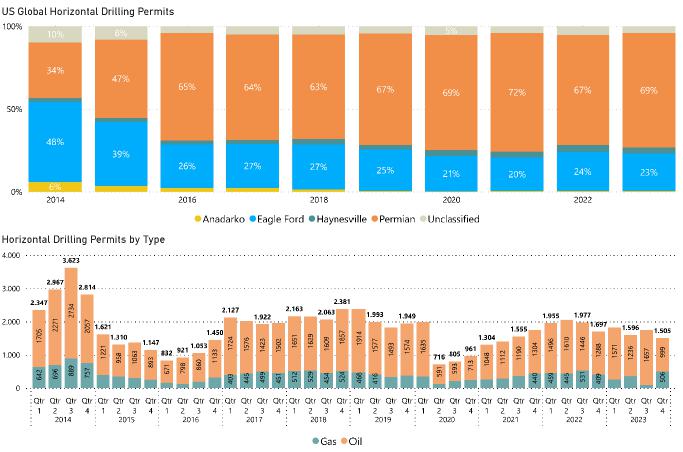

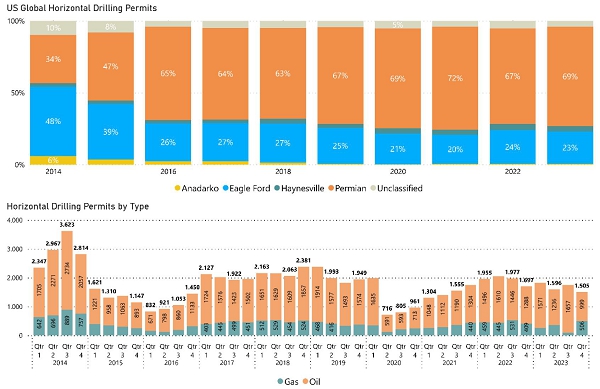

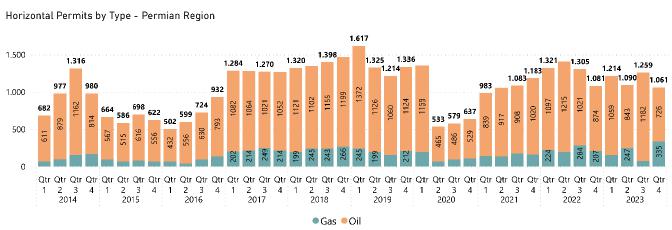

Permit submissions for horizontal oil and gas wells in the Permian Basin indicate a continuation of strong drilling ahead. Utilizing data from Baker Hughes and the Railroad Commission of Texas (RRC), the total number of permits filed ranges between 1,000 and 1,600 per quarter in 2023, a strong rebound from the pandemic lows of 2020.

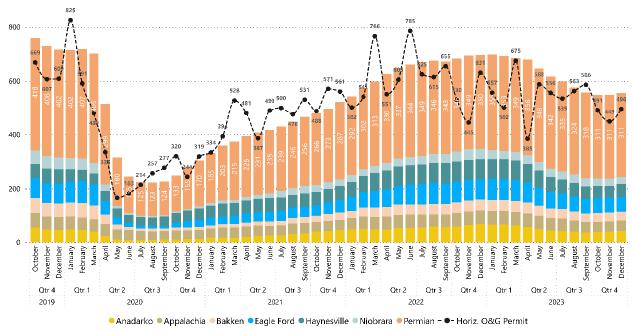

Figure 1.2: Permian Basin HZ Permit Submissions

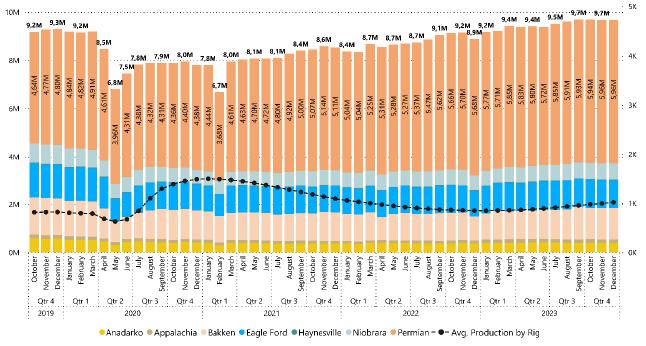

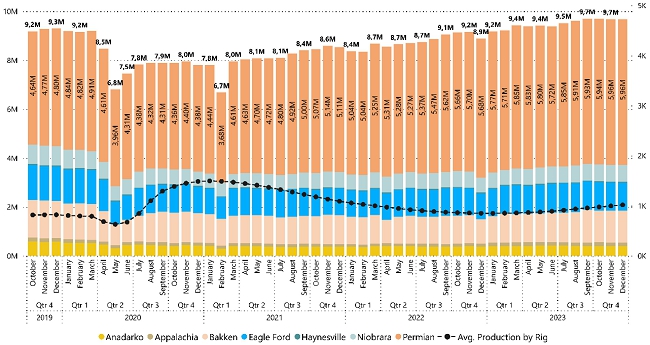

Domestic oil production continues to increase with the Permian leading the way at almost 6 million barrels per day by late 2023.

Source EIA (U.S. Energy Information Administration)

Figure 1.3: Oil Production (bbl/d)

Current frac sand production in the Permian Basin is estimated at 60 million to 65 million tons per year with fairly balanced demand and stable pricing. BOYD anticipates stable frac sand pricing substantially above those used to estimate frac sand reserves for the Kermit Mine. Additionally, we anticipate continued upward sand consumption in the basin due to economic and geopolitical influences on energy demand.

The Kermit Mine’s recent financial performance is summarized as follows:

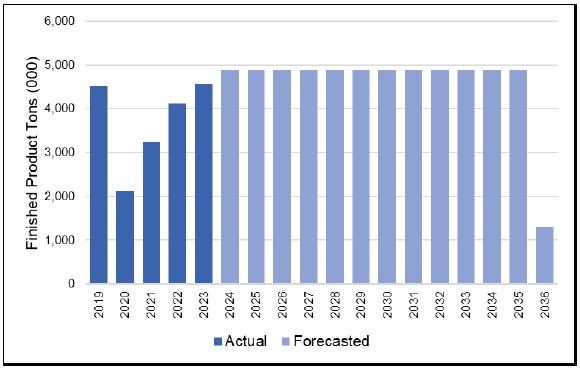

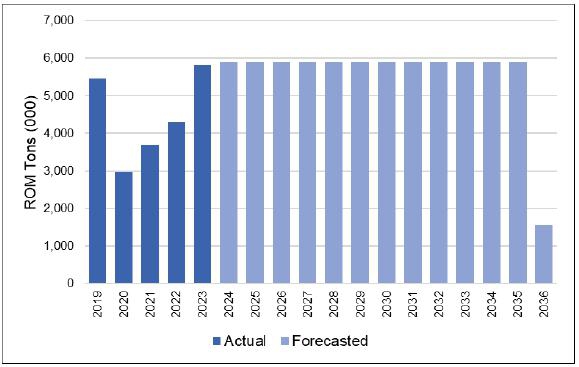

Forward-looking production and unit cost estimates are based on actual past performance and are subject to Hi-Crush’s customary internal budget review and approvals process. In BOYD’s opinion, operating volumes are well-defined and understood, as are mining and processing productivities.

The Kermit Mine and related facilities are fully developed and should not require any near-term major capital investment to maintain full commercial production. Historically, the timing and amount of capital expenditures have been largely discretionary and within Hi-Crush’s control. BOYD projected sustaining capital expenditures is estimated to average $1.50 per ton sold, which includes maintenance of production equipment as well as other items needed for the ongoing operation. This unit cost is based on our judgment and experience with similar operations.

Operating cost estimates were developed based on recent actual costs and considering site specific operational activity levels and cost drivers. Kermit’s operating costs are expected to remain relatively consistent (on an uninflated basis) with 2023 results. As such, the projected total cash cost of goods sold averages $12.85 per ton sold over the life of the mine. As the operation is in a steady state, BOYD considers the future operating cost estimates to be reasonable and appropriate.

An economic analysis of the Kermit Mine was prepared by BOYD for the purpose of confirming the commercial viability of the reported frac sand reserves. Our financial model forecasts future free cash flow from frac sand production and sales over the life cycle of the operation using annual forecasts of production, sales revenues, and operating and capital costs.

Table 1.2, below, provides a summary of the estimated financial results for the remaining life of the Kermit Mine.

Table 1.2: Financial Results

Table 1.3 summarizes the results of the pre-tax and after-tax discounted cash flows (DCF) and net present value (NPV) analyses for the Kermit Mine.

Table 1.3: DCF-NPV Analysis

The NPV estimate was made for the purpose of confirming the economic viability of the reported proppant sand reserves and not for purposes of valuing Hi-Crush, the Kermit Mine, or its assets. Internal rate-of-return (IRR) and project payback were not calculated, as there was no initial investment considered in the financial analysis presented herein.

It is BOYD’s opinion that the financial model provides a reasonable and accurate reflection of the Kermit Mine’s expected economic performance based on the assumptions and information available at the time of our review.

Several permits are required by federal and state law for mining, processing, and related activities at the Kermit Mine. BOYD reviewed the permits necessary to support continued operations at Kermit. Such required permits appear to be valid and in good standing. The approved permits and certifications are adequate for the continued operation of the mine and processing facilities. New permits, permit revisions, and/or renewals may be necessary from time to time to facilitate future operations. Given sufficient time and planning, Hi-Crush should be able to secure new permits, as required, to maintain its planned operations within the context of current regulations.

Mine safety is regulated by the U.S. Department of Labor’s Mine Safety and Health Administration (MSHA). MSHA inspects the facilities a minimum of twice yearly. Hi-Crush’s safety record compares favorably with its regional peers.

BOYD is not aware of any regulatory violation or compliance issue which would materially impact the reported frac sand reserves.

It is BOYD’s overall conclusion that the estimates of frac sand reserves, as reported herein: (1) are reasonably supported by sufficient and reliable exploration data, and (2) are reasonably and appropriately supported by technical evaluations, which consider all relevant modifying factors. We are not aware of any other relevant data or information material to the Kermit Mine that would render this report misleading. Our conclusions represent only informed professional judgment.

Given the operating history and status of evolution, residual uncertainty (future risk) for this operation is considered minor under the current and foreseeable operating environment. It is BOYD’s opinion that extraction of the frac sand reserves reported herein is technically, legally, and economically achievable after the consideration of potentially material modifying factors. The ability of Hi-Crush, or any mine operator, to recover all the reported frac sand reserves is dependent on numerous factors that are beyond the control of, and cannot be anticipated by, BOYD. These factors include mining and geologic conditions, the capabilities of management and employees, the securing of required approvals and permits in a timely manner, future frac sand prices, etc. Unforeseen changes in regulations could also impact performance. None of the opinions presented herein are intended to represent that BOYD intends or is qualified to render opinions that are legal or accounting in nature.

2.0            INTRODUCTION

Hi-Crush provides a combination of finished frac sand products and various logistics solutions to oil and gas companies engaged in exploration and production (E&P) of unconventional oil and natural gas resources throughout the US. Headquartered in Houston, Texas, Hi-Crush was established in 2010 and began operations at their two frac sand mines: the Wyeville Mine in Tomah, Wisconsin in 2011; and the Kermit Mine in Kermit, Texas in August 2017. The company also operates numerous OnCore mining and processing facilities in the Permian Basin, and their Pronghorn last mile sand delivery services.

Additional information regarding Hi-Crush can be found on their website at www.hicrushinc.com.

Hi-Crush retained BOYD to independently prepare and present estimates of frac sand resources and frac sand reserves for the Kermit Mine in accordance with the disclosure requirements set forth in S-K 1300. As such, the purpose of this TRS is threefold: (1) to summarize technical and scientific information for the subject mining property, (2) to provide the conclusions of our review of the information for the property, and (3) to provide statements of frac sand resources and frac sand reserves for the Kermit Mine.

BOYD’s opinions and conclusions are based on our detailed review of the supporting geologic, technical, and economic information provided by Hi-Crush, which were used in formulating the estimates of frac sand resources and frac sand reserves disclosed in this report. We independently estimated the frac sand resources and frac sand reserves from first principles using exploration information provided by Hi-Crush or by third-party experts engaged by Hi-Crush. We employed standard engineering and geoscience methods, or a combination of methods, that we considered to be appropriate and necessary to establish the conclusions set forth herein. As in all aspects of mining property evaluation, there are uncertainties inherent in the interpretation of engineering and geoscience data; therefore, our conclusions necessarily represent only informed professional judgment.

The ability of Hi-Crush, or any mine operator, to recover all the estimated frac sand reserves presented in this report is dependent on numerous factors that are beyond the control of, and cannot be anticipated by, BOYD. These factors include mining and geologic conditions, the capabilities of management and employees, the securing of required approvals and permits in a timely manner, future sand prices, etc. Unforeseen changes in regulations could also impact performance. Opinions presented in this report apply to the site conditions and features as they existed at the time of BOYD’s investigations and those reasonably foreseeable.

This report is intended for use by Hi-Crush, subject to the terms and conditions of its professional services agreement with BOYD. We also consent to Hi-Crush filing this TRS with the SEC pursuant to S-K 1300. Except for the purposes legislated under US securities law, any other uses of or reliance on this report by any third party is at that party’s sole risk.

BOYD is an independent consulting firm specializing in mining-related engineering and financial consulting services. Since 1943, BOYD has completed over 4,000 projects in the United States and more than 90 other countries. Our full-time staff comprises experts in: civil, environmental, geotechnical, and mining engineering; geology; mineral economics; and market analysis. Our extensive experience in frac sand resource and reserve estimation and our knowledge of the subject property, provides BOYD an informed basis to opine on the frac sand resources and frac sand reserves available at the Kermit Mine. An overview of BOYD can be found on our website at www.jtboyd.com.

The individuals primarily responsible for the preparation of this report and the estimates of frac sand reserves presented herein are by virtue of their education, experience, and professional association considered qualified persons (QPs) as defined in S-K 1300.

Neither BOYD nor its staff employed in the preparation of this report have any beneficial interest in Hi-Crush, and are not insiders, associates, or affiliates of Hi-Crush. The results of our assignment were not dependent upon any prior agreements concerning the conclusions to be reached, nor were there any undisclosed understandings concerning any future business dealings between Hi-Crush and BOYD. This report was prepared in return for fees based on agreed-upon commercial rates, and the payment for our services was not contingent upon our opinions regarding the project or approval of our work by Hi-Crush and its representatives.

The information, estimates, opinions, and conclusions presented herein are informed by:

(1) data, reports, and other information provided by Hi-Crush, (2) existing BOYD work files and reports, (3) discussions with Hi-Crush personnel, (4) records on file with regulatory agencies, (5) data, reports, and other information from public sources, and (6) nonconfidential information in BOYD’s possession.

The following information was provided by Hi-Crush:

Work files prepared for, and information contained, in the following BOYD report was utilized to prepare the estimates of frac sand resources and frac sand reserves disclosed herein:

Estimate of Resources and Reserves, Hi-Crush Proppants LLC, Kermit Proppant Sand Property, Winkler County, Texas; September 2017 (BOYD Report No. 3554.014).

Any other information from sources external to BOYD and/or Hi-Crush is referenced accordingly.

The data and workpapers used in the preparation of this report are on file in our offices.

Due to time constraints, BOYD did not conduct personal inspections of the Kermit facilities for this assignment. Various BOYD professionals—including the QPs and co-authors of this report—visited the Kermit property in August 2017. Additionally, the co-authors have visited many of the neighboring frac sand mining operations in the recent past.

In the preparation of this report, BOYD has relied, exclusively and without independent verification, upon information furnished by Hi-Crush with respect to:

Our opinions and conclusions regarding this information are provided in the relevant sections of this report.

2.4.3 Verification of Information

BOYD exercised due care in reviewing the information provided by Hi-Crush within the scope of our expertise and experience (which is in technical and financial mining issues) and concluded the data are reasonable and reliable considering the status of the subject property and the purpose for which this report was prepared.

We have no reason to believe that any material facts have been withheld or misstated, or that further analysis may reveal additional material information. However, the accuracy of the results and conclusions of this report are reliant on the accuracy of the information provided by Hi-Crush. While we are not responsible for any material omissions in the information provided for use in this report, we accept responsibility for the disclosure of information contained herein which is within the scope of our expertise.

BOYD is not aware of any additional information which would materially impact the frac sand resource and frac sand reserve estimates reported herein.

The effective (i.e., “as of”) date of this TRS is December 31, 2023. The estimates of frac sand resources and frac sand reserves and supporting information presented in this report are effective as of December 31, 2023.

To BOYD’s knowledge, this is the first TRS completed for Hi-Crush’s Kermit Mine. The user of this document should ensure that this is the most recent disclosure of frac sand resources and frac sand reserves for the Kermit Mine as it is no longer valid if more recent estimates are available.

The US customary measurement system has been used throughout this report. Tons are short tons of 2,000 pounds-mass. Unless otherwise stated, currency is expressed in US Dollars ($). Historic prices and costs are presented in nominal (unadjusted) dollars. Future dollar values are expressed on a constant (unescalated) basis as of the effective date of this report.

3.0             PROPERTY OVERVIEW

The Kermit Mine comprises two active surface mining and processing operations— referred to as K1 (or Kermit South) and K2 (or Kermit North)—which both produce a “100 mesh” (i.e., 40/140 mesh) sized sand product for use in the hydraulic fracturing process (known as "fracking") to produce petroleum fluids, such as oil, natural gas, and natural gas liquids. Figure 3.1, on the following page, shows the general layout of the Kermit operations, including the locations of the mine offices, maintenance facilities, processing plants, loadout facilities, and current and former mining pits.

Hi-Crush’s Kermit operations are located on one contiguous property (the “Kermit property”) in Winkler County, Texas. The Town of Kermit is approximately nine miles south-southwest of the property and the Midland-Odessa metropolitan area lies approximately 40 miles to the east-southeast. The cities of Lubbock and San Antonio, Texas, are located approximately 125 miles northeast and 325 miles southeast, respectively, of the property. The Kermit property is located on the north side of State Route 115, with the Texas-New Mexico border approximately five miles from the property. Figure 1.1 (page 1-2) illustrates the general location of the Kermit Mine.

Geographically, the Kermit Mine’s K1 processing facilities are located at approximately 31° 57' 55" N latitude and 102° 58' 15" W longitude.

Extensive surface mining of frac sand has been conducted in the West Texas region since the Kermit Mine opened as the first “in-basin” mine in August 2017, and began selling frac sand into the Permian Basin oil and gas industry. Since then, numerous frac sand mines have been opened in the region.

The Kermit property was initially explored and developed by Permian Basin Sand Company, LLC (PBSC) in 2016. Hi-Crush purchased the Kermit property in early 2017 from PBSC and completed extensive exploration and sampling across the property from April to May 2017 while the K1 mining and processing facilities were being constructed.

Site work and construction for the first processing facility (K1) began in February 2017 on the southeast portion of the Kermit property. The K1 wet and dry plants were commissioned in July 2017 and reached full operational capacity in August of the same year.

Due to increasing customer demand and favorable in-basin markets, Hi-Crush began construction of their second Kermit processing facilities (K2) in May 2018 on the northwestern portion of the property. The K2 facilities were fully commissioned and producing finished frac sand by January 2019.

Property control data provided for the Kermit property included mapping and a purchase agreement, which have been accepted as being true and accurate for the purpose of this report.

The Kermit property comprises approximately 1,226 “gross” acres of surface and subsurface (i.e., mineral) rights—all of which are owned in fee by Hi-Crush. The property is contiguous apart from pre-existing easements for pipelines and roadways.

Several existing frac sand mining operations are located in the general vicinity of Hi-Crush’s Kermit Mine, including: Atlas Energy Solutions’ Kermit and Monahans mines; Black Mountain’s Vest and El Dorado mines; High Roller Sand’s 115 Plant; ProFrac’s Kermit and Monahans mines; U.S. Silica’s Crane Plant; and Vista Minerals’ West Texas mine.

There is no information used in this report that has been sourced from adjacent properties.

Mining and related activities for the Kermit mining and processing operations are predominantly regulated by the TCEQ. The Kermit Mine operates under several permits and must comply with other federal, state, and municipal law regulations that do not require a specific permit. Hi-Crush reports that necessary permits are in place or applied for to support immediate operations. New permits or permit revisions may be necessary from time to time to facilitate future operations. Given sufficient time and planning, Hi-Crush should be able to secure new permits, as required, to maintain its planned operations within the context of the current regulations.

To the extent known to BOYD, there are no current violations, fines, liens, or other significant factors and risks that may affect access, title, or the right or ability to perform work on the Kermit property.

The Kermit Mine lies within a rural region of western Texas. The surrounding region has a well-established history of heavy oil and gas industry and agricultural development. The nearby Town of Kermit has a population of 6,016 and the Midland-Odessa metropolitan area has a population of 340,391 according to the 2020 U.S. Census. The surrounding counties have a combined population of over 200,000 people, according to 2020 population estimates by the U.S. Census.

Finished frac sand products from the Kermit Mine are transported to customers by bulk truck and supported by the operation’s extensive on-site loading, storage, and handling facilities. General access to the property is via a well-developed network of primary and secondary roads serviced by local municipality, county, and state governments. These roads offer direct access to the mine and processing facilities and are generally open year-round. Primary vehicular access to the property is via Texas State Route 115, running northeast-southwest through the town of Kermit. Various state highways—TX-302, TX-18, and TX-128—are near the subject property and provide primary access to various portions of the region’s oil and gas fields.

Several regional airports are located within an hour’s drive from the mine, and the Midland International Airport is approximately an hour and a half away by road.

Reliable sources of electrical power, water, supplies, and materials are readily available. Electrical power is provided to the operation by regional utility companies. Water is supplied by the public water system, surface impoundments, and water wells. Additionally, the operation has an abundance of recycled processing water available.

The Kermit property lies within the High Plains section of the Great Plains physiographic province and the Shinnery Sands ecoregion. This region is relatively flat, with windblown sand hills and dunes in various locations. The surrounding areas generally consist of desert valleys covered with windblown sheet and dune sands, high plains covered with thick alluvium (the Llano Estacado or Staked Plains), or plateaus consisting of thin carbonate-based soils (the Caprock Escarpment). The plateau areas, typically covered by a weathering-resistant caliche (a hardened natural cement of calcium carbonate that binds other materials—such as gravel, sand, clay, and silt), may abruptly stand up to 1,000 ft above the plains.

The property is relatively flat, with surface elevations ranging from 3,020 ft above mean sea-level (AMSL) to over 3,090 ft AMSL.

There are not any natural surface waters present on the property.

Land cover in the immediate area consists predominantly of a mixture of shinnery oak, grasses, and other various scrub vegetation.

In and around the Kermit Mine, the summers are long, humid, and hot; the winters are short, cold, and dry; and the skies are mostly clear year-round. Over the course of the year, the temperature typically varies from 32°F to 97°F and is rarely below 22°F or above 105°F. The hot season lasts from mid-May to mid-September, with an average daily high temperature above 89°F. The hottest month of the year is July, with an average high of 97°F and low of 72°F. The cool season lasts from late-November to mid-February, with an average daily high temperature below 67°F. The coldest month of the year is January, with an average low of 33°F and a high of 61°F.

Annual precipitation in the area varies widely from year to year, but generally totals 5 to 12 inches of rain with little-to-no snow.

In general, the operating season for the Kermit Mine is year-round. Adverse weather conditions seldom restrict or interfere with the mining, processing, and loading operations; however, extreme weather conditions may temporarily impact operations. Periodic flooding is possible during heavy rainfall.

4.0            GEOLOGY

Hi-Crush’s Kermit Mine is located within an active sand dune belt, in an area of West Texas where the High Plains and Trans-Pecos desert regions converge. This region is bordered by the Caprock Escarpment of the Llano Estacado to the east and the basins and playas of the Chihuahuan Desert to the west and south. The region’s surface is characterized by windblown Quaternary-aged sand formations, including sand dunes, undivided sand and silt deposits, and sheet sand deposits. The frac sand resources and frac sand reserves of the Kermit property are hosted in these surficial sand deposits.

The origins of these deposits are believed to be a combination of eroded bedrock material from the southern Rocky Mountains, and locally eroded Ogallala Formation sandstone. As portions of the southern Rocky Mountains were eroded via weathering, particles were carried to the Pecos River. Ancient flooding events of the Pecos River resulted in the suspended particles being deposited into flood plains. Once flood waters receded, winds took over, drying and further transporting these particles over the western Texas region.

The Caprock Escarpment of the Llano Estacado marks the eastern-most extent of the surficial sand deposits. Winds transporting particles into the area are thought to have collided with the escarpment, slowing and dropping particles out to where they have accumulated over time. Winnowing processes caused some degree of particle sorting to occur. Due to the mechanisms and long distances of particle transport, sand grains were abraded and rounded as they reached their current locations.

Surficial geologic units covering the area in and around the Kermit property are predominantly comprised of undifferentiated Quaternary Age unconsolidated deposits, ranging from aeolian (windblown) sheet sands and dunes to alluvial sands, silts, clays, and caliche. Geologic mapping shows additional surficial stratigraphic units present in the vicinity of the property; however, the surface geology in and around the mine is primarily comprised of these aeolian sand deposits.

A generalized stratigraphic chart of the geologic units in Winkler County, Texas is presented in Figure 4.1.

Figure 4.1: Generalized Stratigraphic Chart, Surficial Deposits of the Kermit Mine

The following text discusses the strata encountered in and around the Kermit property, in depositional order:

Ogallala Formation

The Ogallala Formation is predominantly comprised of weakly cemented to unconsolidated fine- to medium-grained sands, which may be silty and calcareous in places. A caliche caprock is frequently exhibited, which resists weathering and forms ledges. The thickness of this formation has been recorded up to 550 ft.

Quaternary Sheet and Dune Sands

Most of the Kermit property is uniformly covered by Quaternary sheet and dune sands generally consisting of fine- to medium-grained quartz sand grains mixed with varying degrees of silts, calcareous sands, and caliche nodules. Surficial sand deposition in the study area may range in thickness from less than 10 ft to over 300 ft. There is no discernable overburden (i.e., overlying waste) material apart from sparse areas of vegetation and roots, which are easily removed during processing operations. Unconsolidated alluvial deposits consisting of pebble- to cobble-sized limestone and chert nodules overlain by silts are found to the east of the property. Figure 4.2 (on the following page) provides a map of the sand thickness. A cross-section through the deposit is provided in Figure 4.3 (page 4-4).

The structural features of the Quaternary sands in and around the Kermit property are relatively non-descript. While the unit exhibits variable thickness over the area, it is unaffected by folding or faulting. Due to the lack of structural features encountered, there are no known geological features that are believed to materially affect frac sand mining operations in the immediate area; as such, the deposit is considered to be of low geologic complexity.

The sand mined at Kermit is processed into various frac sand products. Frac sand is a naturally occurring silica sand—also known as quartz sand or white sand—which generally exhibit the following characteristics required by oil and gas producers for use in developing wells:

Aeolian sand deposits, such as those found at Kermit, which are predominantly comprised of silica sand grains meeting the abovementioned characteristics are well-suited to the commercial production frac sands.

5.0      EXPLORATION DATA

In developing the Kermit Mine, Hi-Crush has completed a series of comprehensive geologic exploration campaigns, totaling 42 drill holes—and roughly 2,300 ft of core drilling—across the property. The results of these exploration programs consist of geologic logs and subsurface sand samples, grain size analyses of the samples, and proppant sand testing of composited samples. A detailed exploration report was provided to BOYD for our review, and comprises the primary geologic data used in the evaluation of the frac sand resources and frac sand reserves reported herein.

Maps illustrating the extents of the sand deposit along with electronic copies of drilling and sampling logs, as well as laboratory testing summaries, were provided for our review. The equipment utilized, and the sampling, logging, and field work performed are noted as being appropriate for delineating the frac sand deposit. BOYD opines that the work done by Hi-Crush is thorough and complete for the purposes of evaluating and estimating frac sand resources and reserves on the subject property.

Previous owners of the subject property aimed to investigate the potential to mine and produce frac sand material from the Kermit property for the local Permian Basin energy market, essentially leading the way for the current in-basin frac sand supply trend.

A track-mounted direct push Geoprobe was utilized to complete a total of 130 exploration holes in 2016; however, the equipment utilized proved inadequate to explore the entirety of the Kermit property’s deposit, as the direct push methods proved unable to advance sampling beyond an average depth of only 29 ft below ground surface. Recoveries during this campaign were sufficient overall, but there were also frequent intervals of no recovery recorded whenever more competent clays or caliches were encountered.

This preliminary work provided enough information on the potentially mineable frac sand resources available on the Kermit property for Hi-Crush to purchase, and subsequently further develop, the property in early 2017.

Between April and May 2017, Hi-Crush designed and completed their initial comprehensive exploration drilling and sampling campaign on the Kermit property. Drilling was performed by Cascade Environmental, Inc. (Cascade), utilizing a track mounted rotosonic core rig. A total of 22 drill holes were completed, with drill hole spacing ranging from approximately 1,000 to 2,000 ft on center, and drilling depths sometimes exceeding 80 ft in depth before encountering a red clay interval which defined the bottom of the mineable sand interval. Samples were taken, in duplicate, typically every 2–4 ft through the total depth drilled. Core loss was minimal throughout the duration of this campaign, providing detailed particle size distribution information.

Samples from this campaign were geologically logged and sampled by Hi-Crush personnel, who also secured the samples through the duration of drilling. One set of the obtained sample splits was sent to FracTAL LLC (FracTAL), St. Paul, Minnesota for sample preparation and grain size analyses, while the duplicate sample splits were kept in an on-site storage location for archival purposes.

Throughout Hi-Crush’s campaign, very few of the clayey and/or caliche-rich intervals were encountered, however a clay-rich sand interval was noted within the upper 30 ft of drilling in some drill hole locations, which corresponds to the average depth of the initial exploration campaign (direct push) completed on the property. With Hi-Crush achieving nearly 100% core recovery, and drilling to more than twice as deep as the initial direct push campaign was able to achieve, BOYD decided that: (1) data from Hi-Crush’s campaign provided the most representative delineation of the total mineable sand deposit, and (2) that using only the rotosonic drilling data, which utilized more appropriate drilling and sampling methods for this deposit type, would serve as a much better basis for evaluating the resources and reserves available on the Kermit property.

In December 2023, Hi-Crush completed an additional 20 rotosonic drill holes on the Kermit property. Drilling was again performed by Cascade, utilizing a track mounted rotosonic core rig. In total, an additional 20 rotosonic drill holes were completed, reducing overall drill hole spacing to approximately 600 ft to 1,200 ft throughout the infill drilling areas, which covered a majority of the Kermit property.

Similar methodologies to the previous rotosonic drilling campaign were conducted, in that drilling was terminated once encountering the underlying red clay beneath the mineable sand interval, and sampled intervals were taken in duplicate, with one set being sent for laboratory testing, and the other retained by Hi-Crush in a storage building on the Kermit property. Sample analyses for the 2023 campaign were split up between two labs, as Hi-Crush contracted both FracTAL and Phoenix Processing Equipment, Louisville, Kentucky to complete gradational analyses of 2023 drilling samples.

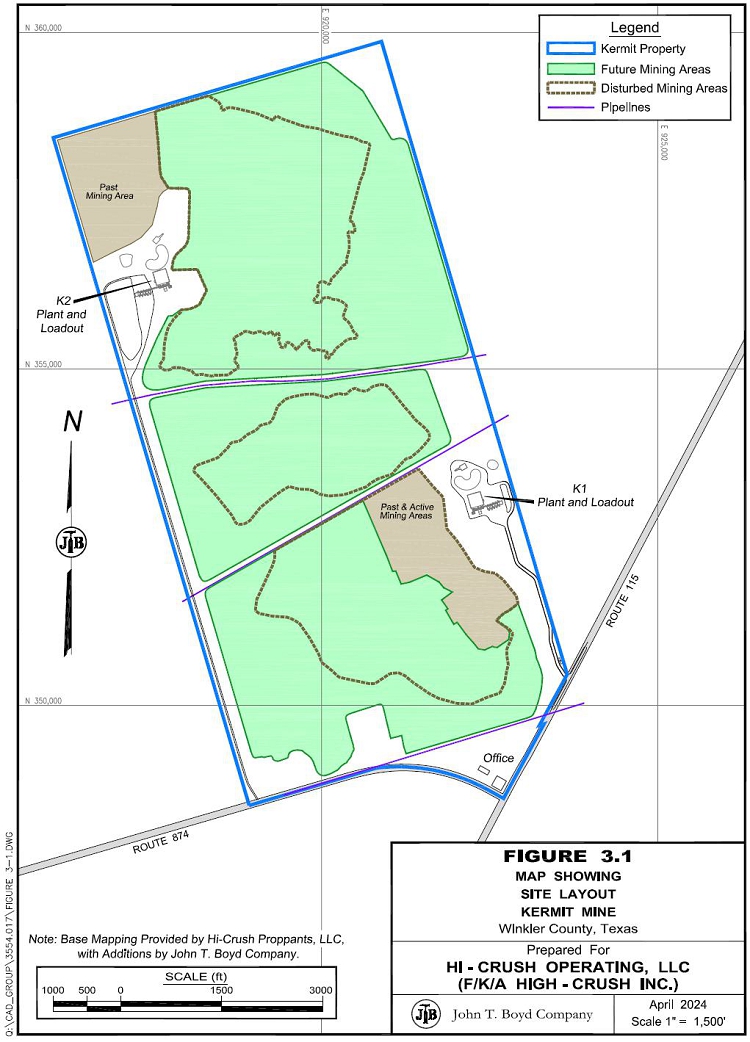

Please refer to Figure 3.1 (page 3-2) for the locations of rotosonic drill holes completed by Hi-Crush on the Kermit property.

Samples obtained from Hi-Crush’s rotosonic exploration campaign were shipped to FracTAL’s laboratory, where they were prepared and analyzed for fines content and particle size distribution.

The general procedure for this particle size distribution analysis was as follows:

FracTAL then prepared various composite samples for 40/70 mesh and 100 mesh product sizes, as directed by Hi-Crush, which were then sent to PropTester, Inc. (PropTester), Cypress, Texas, for API/ISO characteristic analyses. PropTester analyzed the composite samples for standard frac sand characteristic testing according to API RP 19C/ISO 13503-2, Measurement of Properties of Proppants Used in Hydraulic Fracturing and Gravel-packing Operations (API/ISO).

To our knowledge, no other methods of exploration (such as airborne or ground geophysical surveys) were completed on the Kermit property.

The relatively uniform nature of the sand deposit underlying the Kermit property, combined with the results of laboratory testing, indicate the subject property deposit can produce various frac sand products—typically in the 40/140 mesh size fraction—that meet various local Permian Basin customer specifications.

Grain size distribution was analyzed according to API/ISO, Section 6. A table of the weighted average particle size distribution of the in-situ sand deposit, as derived from laboratory testing results, is shown in Table 5.1 below.

Table 5.1: Weighted Average Particle Size Distribution

The preceding table highlights the relative fineness of the sand found within the Kermit deposit, indicating most of the sand particles are concentrated between the “passing 40 mesh” and “retained by 140 mesh” size fraction. Accordingly, the Kermit Mine’s principal marketable product comprises the 40/140 mesh size range frac sand.

As general customer specifications tend to adapt to the local sand characteristics, API/ISO testing for locally sourced frac sands has become less relevant over the past several years. However, it is still of value to be able to demonstrate that the frac sand produced at a mine meets specifications for certain well applications.

Samples gathered during exploration were used to create composite product size samples that were tested by PropTester for API/ISO frac sand characteristics.

Averaged proppant performance test results for the Kermit frac sand deposit are summarized in Table 5.2, below.

Table 5.2: Proppant Performance Test Results

The composite sample testing suggests the Kermit Mine can produce frac sands which meet minimum API/ISO recommended specifications. Moreover, Hi-Crush has demonstrated commercial success producing and selling frac sand to Permian Basin oil and gas producers, where ultimately the sand has been shown to meet customer specifications.

For purposes of this report, BOYD did not verify historic drill hole data by conducting independent drilling in areas already explored. It is customary in preparing frac sand resource and reserve estimates to accept basic drilling and quality testing data as provided by the client, subject to the reported results being judged representative and reasonable.

BOYD’s efforts to judge the appropriateness and reasonability of the source exploration data included reviewing provided drilling logs, sampling procedures, sand quality testing results, and discussing related aspects of the Kermit deposit and processing operations with Hi-Crush personnel during our site visits.

BOYD’s review of the reported procedures indicate the exploration and sampling data obtained for the Kermit Mine were: (1) carefully and professionally collected, prepared, and documented in conformance with general industry standards, and (2) are appropriate for use of evaluating and estimating frac sand resources and frac sand reserves. Similarly, BOYD’s review of testing data provided by Hi-Crush suggests that the analyses completed are generally appropriate to determine frac sand characteristics and determine the subsequent quality of finished frac sand products. As such, it is BOYD’s opinion that the sampling data are also suitable for use in the estimation of frac sand resources and frac sand reserves for the Kermit Mine.

6.0       FRAC SAND RESOURCES AND RESERVES

Unless otherwise stated, frac sand resource and frac sand reserve estimates disclosed herein are completed in accordance with the standards and definitions provided by S-K 1300. It should be noted that BOYD considers the terms “mineral” and “frac sand” to be generally interchangeable within the relevant sections of S-K 1300.

Estimates of any mineral resources and reserves are always subject to a degree of uncertainty. The level of confidence that can be applied to a particular estimate is a function of, among other things: the amount, quality, and completeness of exploration data; the geological complexity of the deposit; and economic, legal, social, and environmental factors associated with mining the resource/reserve. By assignment, BOYD used the definitions provided in S-K 1300 to describe the degree of uncertainty associated with the estimates reported herein.

The definition of mineral (frac sand) resource provided by S-K 1300 is:

Mineral resource is a concentration or occurrence of material of economic interest in or on the Earth's crust in such form, grade or quality, and quantity that there are reasonable prospects for economic extraction. A mineral resource is a reasonable estimate of mineralization, taking into account relevant factors such as cut-off grade, likely mining dimensions, location or continuity, that, with the assumed and justifiable technical and economic conditions, is likely to, in whole or in part, become economically extractable. It is not merely an inventory of all mineralization drilled or sampled.

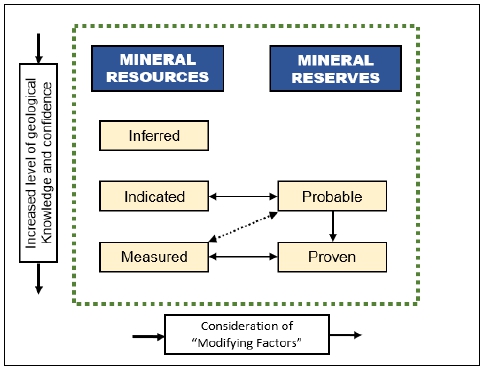

Estimates of frac sand resources are subdivided to reflect different levels of geological confidence into measured (highest geologic assurance), indicated, and inferred (lowest geologic assurance). Please refer to the Glossary of Abbreviations and Definitions for the meanings ascribed to these terms.

The definition of mineral (frac sand) reserve provided by S-K 1300 is:

Mineral reserve is an estimate of tonnage and grade or quality of indicated and measured mineral resources that, in the opinion of the qualified person, can be the basis of an economically viable project. More specifically, it is the economically mineable part of a measured or indicated mineral resource, which includes diluting materials and allowances for losses that may occur when the material is mined or extracted.

Estimates of frac sand reserves are subdivided to reflect geologic confidence, and potential uncertainties in the modifying factors, into proven (highest assurance) and probable. Please refer to the Glossary of Abbreviations and Definitions for the meanings ascribed to these terms.

Figure 6.1 shows the relationship between frac sand resources and frac sand reserves.

Figure 6.1: Relationship Between Frac Sand Resources and Frac Sand Reserves

In this report, the term “frac sand reserves” represent the tonnage of frac sand products that meet customer specifications and will be available for sale after processing of the ROM sand.

BOYD independently prepared estimates of in-place frac sand for the Kermit property by performing the following tasks:

Geologic assuredness is established by the availability of both structural (thickness and elevation) and quality (size fraction) information for the deposit. Resource classification is generally based on the concentration or spacing of exploration data which can be used to demonstrate the geologic continuity of the deposit. When material variations in thickness, depth, and/or sand quality occur between drill holes, the allowable spacing distance between drill holes is reduced. The drill hole spacing criteria established by BOYD after a review of the available exploration data and geologic models and used to classify the frac sand resources of the Kermit Mine are provided in Table 6.1, below.

Table 6.1: Frac Sand Resource

Classification Criteria

Extrapolation or projection of resources in any category beyond any data point does not exceed half the point spacing distance.

The surficial sand deposit on the Kermit property is of low geologic complexity. We believe these criteria appropriately reflect their implied levels of geologic assurance with respect to the estimation of frac sand resources. Since sufficient drilling and sampling has been performed within the remaining mineable portions of the Kermit property, BOYD is of the opinion that there is a low degree of uncertainty associated with the estimates of frac sand resources provided herein.

Development of the frac sand resource estimate for the Kermit Mine assumes mining and processing methods and equipment that have been utilized successfully at the operation for several years.

The target mining horizon at Kermit is manifested as a continuous, low rolling sand unit with relatively consistent depth, thickness, and quality. There is little-to-no overburden, and the high-quality sand is easily distinguished from any waste units; as such, interpretation of the mineable horizon is relatively easy. Generally, all of the sand unit is mined and processed at the Kermit operation. The mined sand is processed to remove out-sized material (i.e., sand which is either too coarse or silts/clays which are too fine to be sold) and produce saleable finished products. The amount of finished sand produced as a percentage of the raw sand mined is referred to as the processing yield (or plant yield), which is analogous to the “cut-off grade” of other mining operations. If the expected processing yield of the sand is too low, the costs of production will outweigh sales revenues and the deposit cannot be economically mined. The minimum economic processing yield is approximately 42% based on Kermit’s historical and forecasted economics (refer to Chapters 10 through 12); however, this is well below the expected processing yields of the Kermit deposit. Other limiting criteria, such as minimum mining thicknesses or maximum stripping ratios (the ratio of waste to sand excavated) are generally not considered in the estimation of frac sand resources for the Kermit Mine.

The limits of the frac sand resources are constrained to those portions of the interpreted sand deposit that:

Frac sand resources for the Kermit Mine are assessed for reasonable prospects for eventual economic extraction by reporting: (1) those resources which have been subsequently converted to proppant sand reserves after the application of all material modifying factors, and/or (2) those resources which have similar characteristics (i.e., mining conditions, and expected processing yields and qualities) to those converted to frac sand reserves.

The criteria employed in developing the estimates of frac sand resources for Kermit are supported by historical results and align with those employed at similar operations. As such, it is BOYD’s opinion that the stated criteria are reasonable and appropriate for the estimation of frac sand resources at the Kermit Mine.

There are no reportable frac sand resources excluding those converted to frac sand reserves for the Kermit Mine. Quantities of frac sand controlled by Hi-Crush within the defined boundaries of the Kermit property which are not reported as frac sand reserves, are not considered to have potential economic viability; as such, they are not reportable as frac sand resources.

BOYD independently estimated in-place frac sand resources for the Kermit Mine from the drilling, sampling, and testing data provided by Hi-Crush. We have reviewed this information, on a representative basis, by confirming the accuracy of geologic model inputs by comparison with drilling logs and laboratory reports. We have developed a stratigraphic grid model of the sand deposit and compared this with the provided exploration data. It is BOYD’s opinion that the geologic model is representative of the informing data and that the data are of sufficient quality to support the frac sand resources estimate provided herein. Furthermore, it is our opinion that the resource estimation methods and criteria employed are both appropriate and reasonable for the deposit type and proposed extraction methods.

Estimates of frac sand reserves for the Kermit Mine were derived contemporaneously with estimates of frac sand resources. To derive an estimate of saleable product tons (frac sand reserves), the following modifying factors were applied to the in-place frac sand resources underlying the mine plan areas:

The overall product yield (after mining and processing losses) at the Kermit Mine is estimated at 79%. That is, for every 100 tons of in-place sand mined, approximately 79 tons will be recovered and sold as product. Mining recovery and processing yield factors are derived from sample sizing data, expected operating performance, and historical operating results.

All of the estimated frac sand reserves are derived from either Measured frac sand resources or Indicated frac sand resources, in accordance with S-K 1300, and are therefore classified as either Proven or Probable frac sand reserves accordingly, after BOYD was satisfied that the frac sand reserve classification reflects the outcome of technical and economic studies. Figure 6.2, on the following page, illustrates the reserve classification of the Kermit frac sand deposit.

BOYD’s estimate of surface mineable frac sand reserves for the Kermit Mine totals approximately 60.9 million saleable product tons, as of December 31, 2023. The frac sand reserves reported in Table 6.2, below, are based on a LOM plan which, in BOYD’s opinion, is technically achievable and economically viable after the consideration of all material modifying factors.

Table 6.2: Frac Sand Reserves (as of December 31, 2023)

The frac sand reserves of the Kermit Mine are well-explored and defined. It is our conclusion that nearly 93% of the stated reserves can be classified in the Proven reliability category (the highest level of assurance) with the reminder classified as Probable.

The Kermit Mine, and other frac sand mining operations in the area, have a well-established history of mining and selling frac sand products into the local Permian Basin energy fields. BOYD has assessed that sufficient studies have been undertaken to enable the frac sand resources to be converted to frac sand reserves based on current and proposed operating methods and practices. Changes in the factors and assumptions employed in these studies may materially affect the frac sand reserve estimate.

The economic viability of the stated frac sand reserves is demonstrated by the production and financial projections and marketing information presented in Chapters 10 through 12 of this report. The forecasted sales prices used in the estimation of frac sand reserves for the Kermit Mine vary by year, ranging from $26.00 to $26.14 per ton, and averaging $26.04 per ton of finished frac sand over the expected life of the reserves (refer to Section 10.5 and Table 12.1 for further details).

The extent to which the frac sand reserves may be affected by any known geological, operational, environmental, permitting, legal, title, variation, socio-economic, marketing, political, or other relevant issues has been reviewed. If and as warranted. It is the opinion of BOYD that Hi-Crush has appropriately mitigated, or has the operational acumen to mitigate, the risks associated with these factors. BOYD is not aware of any additional risks that could materially affect the development of the frac sand reserves.

Given the data available at the time this report was prepared, the estimates presented herein are considered reasonable. However, they should be accepted with the understanding that additional data and analysis available after the date of the estimate may result in a change to the current estimate. These revisions may be material.

Based on our independent estimate and operations review, we have a high degree of confidence that the estimates shown in this report accurately represent the available frac sand reserves controlled by Hi-Crush at the Kermit Mine, as of December 31, 2023.

7.0       MINING OPERATIONS

7.1       Mining Method

The sheet sands and sand dunes in and around the Kermit property are loosely consolidated and overlain by minimal overburden; characteristics which are amenable to the use of conventional surface mining techniques. Since most of the target sand formation does not extend below the water table, the quarry is ‘dry-mined’ using medium-sized earthmoving equipment (i.e., haul trucks and excavators). Mining occurs in a series of benches arranged in a stair-like fashion to recover sand from the top of the formation (in elevation) down to the lowest practical elevation.

Most of the mineable area has minimal overburden and vegetation; as such, sand excavation normally begins at the surface throughout most of the mine plan area. Where present, overburden is stripped from the surface of the sand deposit utilizing bulldozers, loaders, excavators, and haul trucks. The overburden is placed away from the sand dunes in berms or stockpiles which will be planted (i.e., vegetated) to minimize erosion of the material after completion.

Drilling and blasting are not required for the loosely compacted sand. Excavators and front-end loaders are used to load the mined or ROM sand material into articulated haul trucks, which transport the sand to a ROM stockpile near the processing plants. Usually, the uppermost dune sand is mined in one bench, while the lower sheet sands are mined in up to three benches depending on the thickness of the deposit.

Once the mineable interval of sand is excavated, some of the mined-out pits will be used to store reject material from the processing operations.

7.2       Mine Schedule, Equipment, and Staffing

Sand excavation is performed by an outside earthmoving contractor who is obligated to supply the sand processing facilities with sufficient feed material to ensure continuous operations. Mining operations are conducted as required year-round but are generally restricted to 12 hours per day.

The primary mobile equipment involved in sand excavation, stockpiling, and hopper feeding includes:

Most of the mobile equipment fleet is owned and operated by the mining contractor. Regular and major repair maintenance of the fleet is also the contractor’s responsibility. If maintained in good condition, the mobile equipment fleet should be capable of achieving the production levels required by the LOM plan.

Staffing requirements for the mining operations are the responsibility of the earthmover contractor.

7.3       Engineering and Planning

The primary mine planning consideration is the safe, economical, and regular supply of raw high-quality sand feed to the processing plants. In commercial mining terms, the quantities of overburden removed, and sand mined each year at the Kermit Mine are considered modest. The sand deposit affords easy access as a result of its shallow depth and large areal extent. As such, mining plans for the Kermit operation are relatively simple and very flexible; able to be modified based on demand in a relatively short time frame.

Geotechnically, the sand deposit is relatively competent, and the mining depths are so shallow that slumping, or collapsing, has not been and is not expected to be a detriment to the mining process. The pit design parameters utilized at Kermit have been used with success at similar proppant sand operations for many years.

Excessive inflow of groundwater into the mining pits is not expected. As such, dewatering before or during mining activities should be manageable with drainage ditches and sumps. Flood waters from localized flash floods are a manageable risk. Onsite water ponds can be used to hold any excessive ground or storm water.

7.4       Mining Sequence and Production

Over the past five years, the Kermit operation has mined over 22 million tons of raw sand. During 2020, production was reduced from approximately 5.5 million tons per year to under 3 million tons in response to decreased customer demand due to the COVID-19 pandemic. Production rebounded in 2021 and 2022 and is forecasted to rise in the LOM plan as illustrated in Figure 7.1, below.

Figure 7.1: Recent Historical and LOM Forecasted Mining Production

As previously mentioned, the key driver of the mining operations is the adequate supply of feed material to Kermit’s two processing plants. Approximately 5.9 million ROM tons are required to produce 4.9 million tons of finished product annually. At this production rate, the Kermit operation has an expected life of 13 years. Future mine production, and hence the longevity of the mine, is directly related to the energy market demand for proppant sand. Actual yearly production volumes may, and are likely to, fluctuate significantly based on this demand.

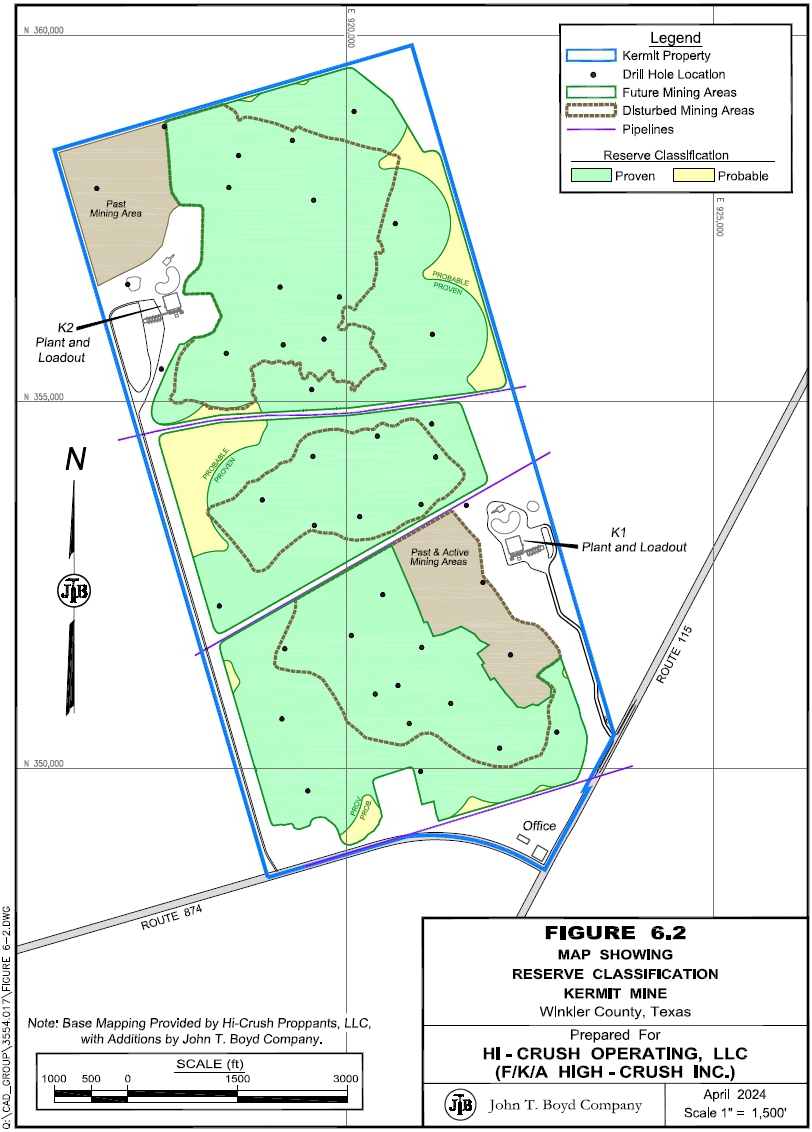

The areal extents of the remaining mining areas (as shown in Figure 6.2, on page 6-7) and the geologic characteristics of the sand deposit afford the Kermit Mine a great deal of operational and planning flexibility. Generally, mining operations are expected to advance in blocks outwards from the two processing plants to reduce haul distances and expand waste storage capacity.

It is BOYD’s opinion that the forecasted production levels for the Kermit Mine are reasonable, logical, and consistent with typical sand surface mining practices in the region.

7.5       Mining Risks

Surface mines face two primary types of operational risks. The first category of risk includes those daily variations in physical mining conditions, mechanical failures, and operational activities that can temporarily disrupt production activities. These conditions/circumstances can adversely affect production on any given day but are not regarded as “risk issues” relative to the long-term operation of the mine. Instead, these are considered “nuisances” that, while undesirable, are encountered on a periodic basis at many mining operations. BOYD does not regard these issues as being material to the Kermit Mine’s operations or otherwise compromising its forecasted performance.

The second type of risk is categorized as “event risk”. Items in this category are rare, but significant, occurrences that ultimately have a pronounced impact on production activities and corresponding financial outcomes. Examples of event risks are major fires or explosions, floods, or unforeseen geological anomalies that disrupt extensive areas of proposed or operating mine workings and require alterations of mining plans. Such an event can result in the cessation of production activities for an undefined but extended period (measured in months, and perhaps years) and/or result in the sterilization of frac sand reserves. This type of risk is minimal in a relatively simple surface frac sand mining operation such as the Kermit Mine.

8.0       PROCESSING OPERATIONS

8.1       Overview

Hi-Crush operates two mining and processing facilities—K1 (or Kermit South) and K2 (or Kermit North)—at the Kermit Mine. The Kermit operations predominantly produce 40/140 mesh frac sand—that is, sand particles larger than 40 mesh and smaller than 140 mesh are not considered finished product and are discarded as waste.

Construction on the K1 frac sand processing facilities began in February 2017 and the plants were commissioned in July 2017. Construction on the K2 processing facilities began in May 2018 and the plants were commissioned in December 2018.

The two Kermit processing facilities share very similar designs. Each of the Kermit processing facilities has a nominal (or “nameplate”) capacity of 3 million tons of finished frac sand per year for a combined production capacity at Kermit of 6 million tons per year.

8.2       Processing Method

Each of the Kermit Mine’s processing operations comprise three major components which are typical in the production of frac sand. These components include:

8.2.1    Wet Plant

The wet plant receives its raw sand feed from a ROM stockpile which is supplied by the mine. A front-end loader loads the ROM sand into a grizzly or scalping screen feed hopper. The oversized (greater than 6 or 8 mesh) material is screened out and the remaining sand is mixed with water to be pumped to and processed through the wet plant.

Each wet plant consists of two parallel wash circuits with a combined capacity of 750 tons per hour (tph). This arrangement offers a degree of flexibility as one plant circuit can be idled for maintenance, while the others are operating.

The wet plants do not crush the material, but predominantly scrubs (i.e., washes) and classifies (i.e., sizes) the sand feed material. Basically, a screen removes the 6–8 mesh top size or oversize material, and cyclones deslime and remove the minus 200 mesh material. Dewatering screens remove excess moisture. The resultant material— commonly referred to as Work-In-Progress (WIP)—is stockpiled as feed for the dry plant. The WIP stockpile rests on a water decant system which reduces the sand’s moisture content prior to entering the dry plant.

The waste wash/process water is directed to a thickener and then to a series of settling ponds. Chemical flocculant is added as the water is discharged into the retention ponds to aid with particle settling. Water used for the wet plant processing is recycled as it is sourced from a lined retention pond. The closed-loop process water circuit provides for efficient use of water as the majority is collected and recycled in the process. Water conservation is a high priority at the operation. The wet plant typically operates 24 hours per day, 7 days per week.

8.2.2    Dry Plant

A front-end loader is used to recover the WIP material from the decanted stockpile and feed it into each of the dry plants. The dry process plants each utilize three vibrating fluid bed dryers in parallel to dry the damp sand. After drying, the sand is classified (i.e., sized and sorted) using screens into a 40/140 mesh product. Any oversize material remaining at this point is screened off and deposited in the dry waste stockpile.

The K1 and K2 dry plants each have a nameplate capacity of 450 tph.

8.2.3    Storage and Loadout

Following the classification of the sand, the resulting products are stored in one of five product storage silos at each plant (10 storage silos in total). Each silo has a capacity of 3,000 tons for a total combined product storage of 30,000 tons at Kermit. Each silo has an under-silo loading point with truck scales for loading into on-highway trucks for transport to the well sites.

8.3       Production

Each of the Kermit processing facilities have a nameplate capacity of 3.0 million tons of finished “100 mesh” sand per year based on operating 24 hours a day and nearly 365 days per year. Recent annual production results and forecasted production over the expected life of the operation are provided in Figure 8.1, below.

Figure 8.1: Recent Historical and LOM Forecasted Processing Plant Production

As shown, the Kermit Mine plans to produce on average 4.9 million tons per year of finished products or approximately 82% of nameplate capacity. However, annual finished product volumes will depend on market demand and may fluctuate substantially.

8.4       Processing Risks

BOYD is unaware of any reported interruptions, outages, shortages, or failures related to processing operations that have materially affected the Kermit Mine. Given the operation is well-established, we believe the risk of such events materially affecting the estimates of frac sand reserves presented herein is low.

Based on our review, it is BOYD’s opinion that the processing methods and existing equipment at the plant are sufficient for the forecasted production of finished proppant sand products.

9.0       MINE INFRASTRUCTURE

9.1       Overview

All of the basic infrastructure required for the ongoing operations is in place at the Kermit Mine. Figure 3.1 (page 3-2) illustrates the general layout of the infrastructure at the Kermit operations.

The surface facilities currently located at the operation are well constructed and have the necessary capacity/capabilities to support the Kermit Mine’s near-term operating plans. Operational preference may lead to the upgrading of some existing facilities if the operation expands in the future.

BOYD is unaware of any reported interruptions, outages, shortages, or failures related to infrastructure requirements that have materially affected the Kermit operations. Given the operations are well-established, we believe the risk of such events materially affecting the estimates of frac sand reserves presented herein is low.

9.2       Transportation

The Kermit Mine is serviced by several roads maintained by the local municipality, county, and state governments. These roads are either paved or well-maintained graded roadways. Road access is available year-round.

There is not any rail infrastructure available at Kermit. All products are shipped via bulk trucks. Transloading would be required to use existing rail networks. Hi-Crush plans to continue to transport their products from the Kermit operation via road.

9.3       Utilities

The K1 and K2 facilities are serviced by three-phase electric power. Substations access 138 kV lines and step voltage down to 12.5 kV lines which deliver power to the processing plants. Line natural gas is supplied to all dry plants. Natural gas line capacity and substation capacity is sufficient to serve much more than 100% of Kermit’s current requirements.

The wash process water is recycled after fines are removed via settling with a flocculent in a series of constructed ponds. As the mine progresses, silt ponds are constructed in mined-out areas. Additional makeup water is obtained from wellfields near the plants. The wells are only utilized as a backup water supply.

Wastewater from offices and other buildings is collected via holding tanks and disposed of on a regular basis. Potable water is provided by the public water system.

9.4       Tailings Disposal

The mining and processing of frac sand at the Kermit operations creates a substantial volume of tailings (i.e., waste material). These tailings are typically a mixture of clay, very fine sand, and other non-silica minerals. Tailings are typically disposed of in ponds (i.e., former mining pits) where the solid materials settle to the bottom and water is recovered for reuse. As mining progresses, depleted pits will become new tailings disposal sites. Freshwater ponds are maintained on the property so water can be stored after processing through the tailings ponds.

9.5       Other Structures

On-site facilities include a scale house, employee camp, garage, office buildings, maintenance shop, warehouse, and quality laboratories.

10.0   MARKET ANALYSIS

10.1     Market Overview and Outlook

The Permian Basin’s (Permian) frac sand market is driven by unconventional horizontal drilling in the oil and gas industry. In the late 1990s, rapid advances in horizontal drilling and hydraulic fracturing (fracking) in North America ushered in large-scale commercial oil and gas production. This fracking technique has been increasingly successful and modified over time to extract oil and gas held in dense layers of shale rocks, whose low permeability had previously prevented the flow of hydrocarbons.

Hydraulic fracturing uses a mixture of water, chemicals, and proppant (natural sand or man-made sand-like substances) to fracture shale rock and release hydrocarbons such as oil, natural gas, and natural gas liquids. The proppant acts to keep the fractures open (prop) while the pressurized fluids flow back up the well piping. Wells have become more productive with the addition of horizontal drilling capabilities, longer lateral lengths, and multi-stage fracks.

North America’s shale oil industry’s growing competitiveness gained through continuous technology improvement and falling production costs have had major implications on the global energy market. Oilfield service companies, including frac sand producers, made significant efficiency gains in 2020 to survive lower commodity prices because of the COVID-19 pandemic. These gains have followed through to the present day.

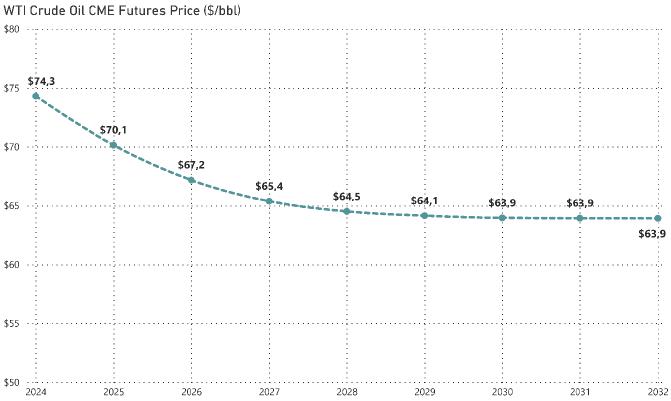

Figure 10.1, on the following page, illustrates the CME Group’s West Texas Intermediate (WTI) Crude Oil Annual Average Futures Price. We estimate breakeven pricing for unconventional oil wells in the Permian to be in the $30 to $40 per barrel range. 2023 WTI futures estimate pricing to generally be in the $64 to $75 range through 2032. This cost and pricing combination supports positive wellfield economics and thus frac sand consumption.

Source: CME Group

Figure 10.1: WTI Crude Oil CME Futures Price

Figure 10.2, on the following page, is compiled from downloaded and processed publicly available data from the Railroad Commission of Texas (RCC) for horizontal oil and gas permits in the U.S. This data shows a steady increment from the post-pandemic all-time low of 716 permits recorded in the 2^nd quarter of 2020, to almost 2,000 permits in the 3^rd quarter of 2022. From this period until the 4^th quarter of 2023, a slow decreasing trend is shown with an average of 1,600 permits by quarter. It is important to note in this figure that most of the permits are based in the Permian region (with an average of 70% of all permits) followed next by permits in the Eagle Ford region (with an average of 21% of all permits) over the last 4 years.

From the 1^st quarter of 2021 to the 4^th quarter of 2023, the global distribution by permit type is 76% oil and 24% gas. Permit submissions for horizontal oil and gas wells in the Permian follow the same trend of the U.S. Global Permits which suggests a continuation of strong drilling ahead.

Source RCC

Figure 10.2: U.S. Global Horizontal Drilling Permits by Region and Type

A quarterly summary of Permian horizontal oil and gas well permits (from 2014 through 2023) is presented in Figure 10.3 below.

Source RCC

Figure 10.3: Permian Region Horizontal Drilling Permits by Type

Figure 10.4 was prepared combining data available for the current working rigs by region and the horizontal drilling permits. From September 2020 there is a noticeable and constant increase in the rig counts, reaching an all-time high number of permits since the COVID-19 pandemic in January 2023.

Source EIA and RCC

Figure 10.4: U.S. Horizontal Drilling Permits

During the previous 52 weeks, rig counts were down approximately 13%. However, the continuous growth through the last three years has led to increased production for both crude oil and natural gas. For the same period, crude oil (barrels per day) and natural gas production (thousand cubic feet per day) in the Permian are up 30% and 24%, respectively.

As figures 10.5 and 10.6 illustrate, Permian daily crude oil production is reaching multi-year highs, while daily natural gas production in the Permian continues to make new records, now standing at 24.1 million cubic feet per day.

Source EIA

Figure 10.5: Oil Production (bbl/d)

Source EIA

Figure 10.6: Natural Gas Production (Mcf/d)

The EIA’s Drilling Productivity Report reports that the inventory of drilled but uncompleted wells (DUCs) in all regions have declined 49% since peaking in July 2020 (refer to Figure 10.7 for all U.S. regions, and Figure 10.8 for the Permian). This data dovetails with increased crude oil and natural gas production.

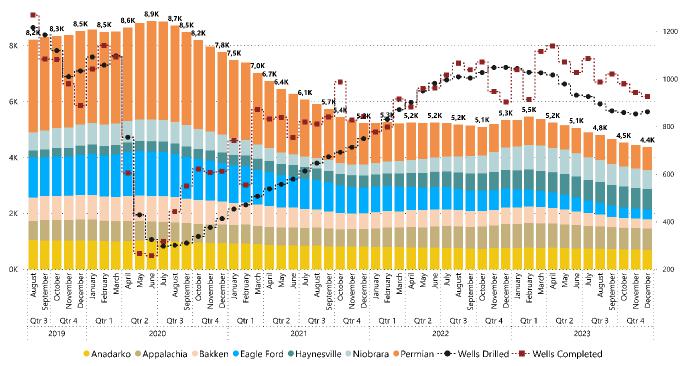

Source EIA

Figure 10.7: U.S. Drilled but Uncompleted Wells (DUC)

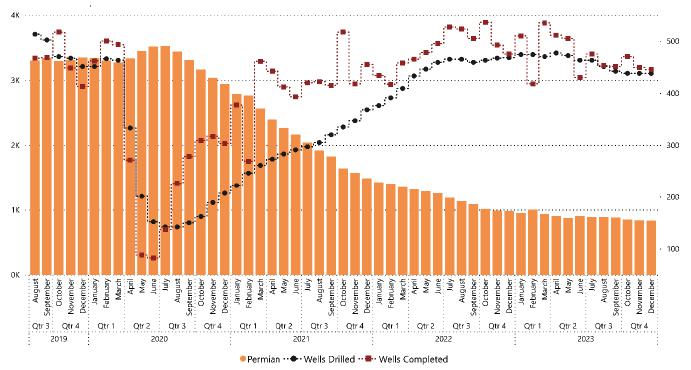

Source EIA

Figure 10.8: Permian Drilled but Uncompleted Wells (DUC)

Consequently, with increases in production and well completions, activity at frac sand mines has correspondingly increased throughout the U.S. According to MSHA, operating hours from 1^st quarter of 2021 through 3^rd quarter of 2023 were up 60% for Permian Basin frac sand mines. This data is presented in figures 10.9 (U.S.) and 10.10 (Permian).

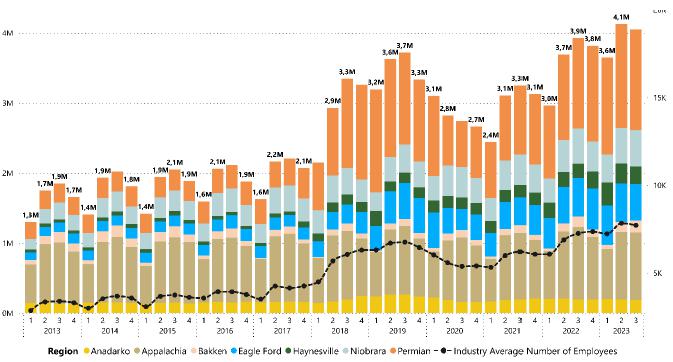

Source MSHA

Figure 10.9: All U.S. Regions Mine Hours (Quarterly)

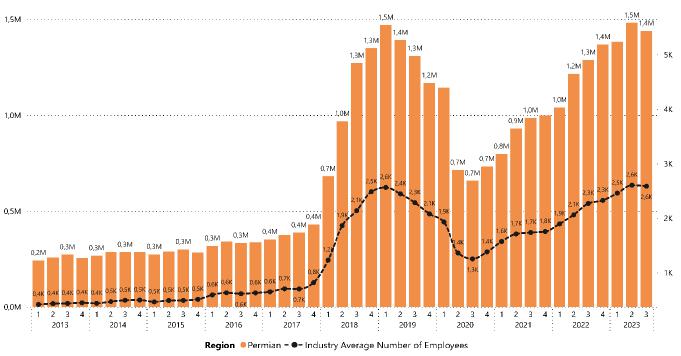

Source MSHA

Figure 10.10: Permian Wide In-Basin Mine Hours (Quarterly)

Industry research speculates that total in-basin mine hours, as of 2^nd quarter 2023, are at the same level as the 2019 peak. Mine hours serve as a directional indicator that dovetails with previous crude oil and natural gas production and DUC data. Current frac sand production in the Permian is estimated to be in the 60 million to 65 million tons per year range, with fairly well-balanced demand and stable pricing. BOYD anticipates frac sand pricing stabilizing substantially above the pricing used in this report. Additionally, we anticipate continued upward sand consumption in the Permian due to economic and geopolitical influences on energy demand.

10.2 Historical Sales

Primarily, Hi-Crush supplies a range of frac sand products to major oilfield services companies and E&P companies operating in the Permian Basin. The Kermit Mine is Hi-Crush’s flagship operation in West Texas where they also operate several smaller, built-for-purpose mobile mining and processing facilities. Finished products supplied by the Kermit operation primarily consist of non-API standard “100 mesh” (i.e., 70/140 mesh) frac sand.

Recent historical sales data provided by Hi-Crush for the Kermit Mine are summarized in Table 10.1, below.

Table 10.1: Historical Sales Data

Frac sand demand dropped in 2020, as compared to 2019, due to the COVID-19 pandemic. However, recovery began in the fourth quarter of 2020 and continued through 2023. In 2020, the ASP for the Kermit operation’s finished frac sand products was $13.86 per ton. In 2021, the ASP decreased to $14.03 per ton. Despite rises in production, the Permian Basin’s demand for in-basin frac sand outstripped supply in 2022. Consequently, prices for in-basin finished frac sand products rose significantly during the year; Kermit’s ASP in 2022 was $23.91 per ton. Sales volumes were slightly up sequentially in 2023, resulting in an ASP of $26.78 per ton.

Hi-Crush has structured long-term contracts with some customers outlining volume commitments and, in some cases, fixed pricing. Hi-Crush also services customers on a spot basis where volume thresholds are not set, and orders are serviced on an as-available basis at prevailing market prices. Historically, the top-five customers by sales revenue account for approximately 81% to 97% of total sales from the Kermit Mine annually. Inter-company sales represent a significant portion of Kermit’s frac sand sales to date.

10.3     Market Entry Strategies

As an existing producer with a lengthy commercial history and established customer base, it is BOYD’s opinion that market entry strategies are not required for continued sale of the Kermit Mine’s frac sand products.

10.4     Future Sales

BOYD’s projections of sales volumes and frac sand prices for the Kermit Mine are informed by Hi-Crush’s historical operating results, their short-term budget forecasts, and our knowledge of frac sand markets. Forecasted prices are based on sales of 40/140 mesh finished frac sand. Our frac sand sales forecast for the Kermit Mine is provided in Table 10.2, below.

Table 10.2: Frac Sand Sales Forecast

BOYD is not aware of any material contracts for the sale of frac sand from the Kermit Sand Mine.

11.0     CAPITAL AND OPERATING COSTS

11.1     Historical Financial Performance

Table 11.1 summarizes the past five years of financial data for the Kermit operations. It should be recognized that the COVID-19 pandemic caused severe economic, market, and other disruptions which affected frac sand sales during 2020 and 2021.

Table 11.1: Historical Financials

The Cost of Goods Sold includes operating costs (i.e., mining, processing, product loadout, and other related costs) in addition to site-specific general and administrative expenses.

Based on the financial data presented above:

11.2     Estimated Costs

The production and unit cost estimates for the Kermit Mine are informed by Hi-Crush’s historical performance and internal budget forecasts, in combination with BOYD’s familiarity with mining costs at similar operations. Operating volumes are well-defined and understood, as are mining and processing productivities at the Kermit operation. As such, it is BOYD’s opinion that the production and financial projections are reasonable and are likely to be within ±20% accuracy level.

This section contains forward-looking information related to capital and operating cost estimates for the Kermit Mine. There are inherent known and unknown risks and uncertainties associated with all mining operations. These risks, uncertainties, and other factors are not quantifiable, but include, but are not limited to, adverse general economic conditions, operating hazards, inherent uncertainties in interpreting engineering and geologic data, fluctuations in commodity prices and prices for operational services, government regulation and political risks, as well as other risks commonly associated with the mining industry.

11.2.1 Projected Capital Expenditures

The Kermit Mine and related facilities are fully developed and should not require any near-term major capital investment to maintain full commercial production. Historically, the timing and amount of capital expenditures have been largely discretionary and within Hi-Crush’s control. BOYD projected sustaining capital expenditures at a unit cost of $1.50 per ton sold, this includes maintenance of production equipment as well as other items, for the operation. This factor is based on our judgment and experience with similar operations.

11.2.2 Projected Operating Costs

Operating cost estimates were developed based on recent actual costs and considering specific operational activity levels and cost drivers. The estimates consider current and expected labor headcount and salaries, major consumables and unit prices, power costs, and equipment and maintenance costs. The total operating cost estimate includes all site costs related to mining, processing, loading, and general and administrative expenses (including non-income taxes, fees, and royalties).

Kermit’s operating costs are expected to remain relatively consistent (on an uninflated basis) with 2023 results. As such, the projected total cash cost of goods sold over the life of the mine averages $12.85 per ton sold over the life of the mine. As the operation is in a steady state, BOYD considers the future operating cost estimates to be reasonable and appropriate.

12.0            ECONOMIC ANALYSIS

12.1            Approach

The economic analysis presented in this chapter was prepared by BOYD for the purpose of confirming the commercial viability of the Kermit Mine’s reported frac sand reserves and not for the purpose of valuing the Kermit operations, or its assets. The economic analysis contains forward-looking information related to Kermit’s projected operating and financial performance. This projection involves inherent known and unknown risks and uncertainties, some of which may be outside of Hi-Crush’s control. Hi-Crush, as with all mining companies, actively evaluates, changes, and modifies business and operating plans in response to various factors that may affect operational and/or financial results. Actual results, production levels, operating expenses, sales realizations, and all other modifying factors could vary significantly from the assumptions and estimates provided in this analysis. Risk is subjective, as such, BOYD recommends that each reader should evaluate the project based on their own investment criteria.

The financial model used for the purposes of the economic analysis forecasts future free cash flow from frac sand production and sales over the life cycle of the Kermit operations using the annual forecasts of production, sales revenues, and operating and capital costs discussed earlier in this report. A DCF analysis, in which future free cash flows are discounted to present value, is used to derive an NPV for the frac sand reserves. The use of DCF-NPV analysis is a standard method within the mining industry to assess the economic value of a project after allowing for the cost of capital invested.

The financial evaluation of Kermit has been undertaken on a simplified after-tax basis and does not reflect Hi-Crush’s corporate tax structure. NPV is calculated using an after-tax discount rate of 10% (NPV10). Cash flows were assumed to occur in the middle of each year and are discounted to January 1, 2024. Cost estimates and other inputs to the cash flow model for the project have been prepared using constant 2023 money terms, i.e., without provision for inflation. The internal rate of return and project payback were not calculated, as there was no initial investment (sunk costs) considered in the financial model provided herein.

A suite of sensitivities was calculated to evaluate the effect of the main drivers of economic performance (including variations in sales prices, operating costs, and capital costs).

It is BOYD’s opinion that the financial model provides a reasonable and accurate reflection of Kermit’s expected economic performance based on the assumptions and information available at the time of our review.

12.2            Assumptions and Limitations

Cash flow projections for Kermit have been generated from the annual forecasts of production, sales revenues, and operating and capital costs discussed earlier in this report. A summary of the key assumptions and limitations is provided below:

12.3            Financial Model Results

Table 12.1, below, provides a summary of the estimated remaining life of mine financial results for the Kermit Mine.

Table 12.1: Financial Results

Estimated LOM pre-tax and after-tax cash flows for frac sand production from the Kermit Mine are presented in Table 12.2, on the following page.

Table 12.2

ANNUAL PRODUCTION AND CASH FLOW FORECAST

KERMIT      MINE

Prepared For

HI-CRUSH INC.

By

John T. Boyd Company

Mining and Geological Consultants

April 2024

DCF-NPV on a pre-tax and after-tax basis, using discount rates of 8%, 10% (the base case), and 12%, were calculated utilizing the projected cash flows. Table 12.3 summarizes the results of the pre-tax and after-tax DCF-NPV analyses:

Table 12.3: DCF-NPV Analysis

As shown, the pre-tax DCF-NPV ranges from approximately $382.5 million to $458.8 million. The after-tax DCF-NPV ranges from approximately $304.5 million to $365.9 million.

The economic analysis confirms that the Kermit Mine generates positive pre- and after-tax financial results and a real NPV10 of $332.8 million. As such, it is BOYD’s opinion that the frac sand reserves of the Kermit Mine have demonstrated economic viability.

12.4            Sensitivity Analysis

Table 12.4, below, shows the sensitivity of the project after-tax for a cash flow discounted at 10% (NPV10) to a variation over a range of 20% above and below the base case in:

(1) average selling prices and (2) operating costs.

Table 12.4: After-Tax NPV₁₀ Sensitivity Analysis ($ millions)
